Dry-type iron core shunt reactor
Overview

  • Execution standard

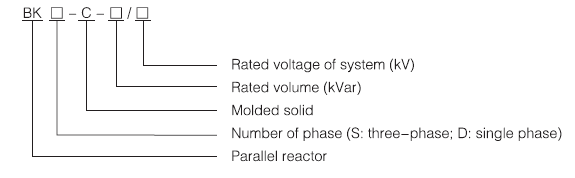

  • Model
  • Performance
  • Parameters
  • Appearance
    • GB/T17211-1998 《Load Guidance of Dry Power Transformer》
    • GB10229 IEC60076-6
  • Basic ordering data
    • Rated volume;
    • Rated voltage;
    • Maximum operation voltage of parallel reactor;
    • Rated current;
    • Rated reaction;
    • Cooling mode (AN or AF);
    • Utilization conditions (indoor);
    • According to the application of parallel reactor, other required performance data is marked in the contract.
  • echnical parameters of BKSC series of iron core parallel reactor
    Model Rated volume (kVar) Rated voltage (kV) Rated current (A) Rated impedance (Ω) Loss 75℃ (W) Outline dime. Weight (kg)
    a b c d e f
    BKSC-1500/1015001086.666.671360019001030182061517204804100
    BKSC-4000/1040001017330.251970026001320230082520255309300
    BKSC-5000/10.5500010.527522.0522000276013202150885196064011450
    BKSC-6000/1060001034616.6725000288013202210925201061013600
    BKSC-8000/1080001046212.5320003100132023501000210063517100
    BKSC-10000/10.51000010.554511.02380003300160024101075215072019000
    BKSC-9000/2090002026044.44341003280160024501060225073017900
    BKSC-10000/351000035165122.5397003980160028901280260095022000
    BKDC-6667/35666735√333061.26267003320160028881190271480013800
    BKDC-10000/351000035√349540.8391003780160030321360285183416500
  • Schematic diagram of appearance and installation of dry iron core parallel reactor
